Evo/DSM Big Brake Upgrade How-To

40723 Views 59 Replies 19 Participants Last post by  mkjh
Okay, well a recent thought and test fit I did, along with using my Elantra as a guinea pig, has confirmed that other-Hyundai brakes are not the only ones to successfully work on these cars.

What do you mean 2Liter?

I mean there are other options of course. As some of you may know, I have been a DSMer for years. Here's a little bit of history. The 1990-1999 Non-Turbo, as well as Turbo FWD models all came with a single piston front caliper, and 10" rotors (garbage). Early first gen (1990-1991) Turbo AWD models also came with these horrible brakes. However, in 1992 Mitsubishi decided the heavier (3200++) lb AWD car needs a bit more braking force. So the dual piston, 11" rotor combo was introduced.

So does this mean any 1992-1999 DSM brakes will work?

No. Technically NO DSM brake will be a complete bolt-on. The reason being, DSM's have a 5x114.3 bolt pattern, where as our Elantras only share a 4x114.3. So technically, if you have a 5-lug Tiburon hub swap on your Elantra, these will work. Another thing to note - The 1995-1999 AWD DSM (aka Eclipse GSX, or Talon TSi AWD) calipers are the exact same as a 1992-1994 AWD DSM. With the exception of brake line fittings. The 1995-1999 share a banjo bolt feed, yes, just like our Elantras. The 1992-1994 does not. These DSM calipers also share the exact same mounting bracket style as our Elantras. The distance between the 2 mounting bolts to hold the caliper to the knuckle are the exact same - 5".

The beauty of this all? The DSM caliper is 100% compatible with all your factory Hyundai fasteners. The thread pitch and length of both of the caliper mounting bolts, as well as the feed banjo bolt, is the exact same.

Okay, so now I can bolt up a 1995-1999 AWD DSM caliper to my Elantra. What about the rotor?

Well, for one the stock 10" rotor or whatever it is on our cars won't work. You'll have about 1/3 of the pad off the disc. We also determined DSM rotors won't work due to the bolt pattern difference (unless of course, it's 5-lug swapped) So then, what can I do? Well there are a few options. You can go ahead and get the stock DSM rotors re-drilled for 4x114.3. Or you can do what I did. Find a set of early Lancer Evolution rotors!

EVO parts on my Elantra?!

Yes. Some more history: The CD9A and CE9A Evolutions (AKA Evo I, II, and III) between the years of 1992-1996 all share a 4x114.3 bolt pattern, 67.1mm center bore hub - same measurements we have on our Elantras. The disc is also 11". Matter of fact, it's similar to that of a DSM with the exception of the bolt patern. The Evo I, II, and III also use the exact same dual piston caliper as a 1995-1999 AWD DSM.

What about brake lines?

Well like mentioned earlier, the caliper fittings are the same as our stock Elantra. However, if you're going to be doing this upgrade, it would be very wise to replace the garbage rubber lines with fresh, stainless braided brake lines. Any Elantra aftermarket lines will work. Or if you're into Frankenstein builds like me, a 1995-1999 DSM or 1992-1996 Evolution stainless braided line will work. The fitting that mates to the hard line on the car, is the same thread Evo/DSM to Elantra. So they will thread right in.

And what about clearance?

I am running the brake setup under my stock, factory 15" steelies and they clear by about 2mm. They look really good crammed in there. 15" factory alloys, I cannot confirm since I do not have any. However any aftermarket 16" and up will clear, along with the OEM 15" steelies.

Okay, so I understand the theory - what about install?

Well the install is the easiest part - Once you have everything, it's 100% direct bolt on. No tricks, no surprises, no fasteners needed. If you know how to unbolt the old calipers, old lines, and slide off the old rotors, you will know how to install these brakes. Because it's the exact same process as putting back your stockers. Except you're gaining a lot better braking. Oh yeah. And you will obviously need to bleed the brakes after ;)

Let's do some comparisons.

Here are the stock front brakes Hyundai equipped our cars with:

Here is the stock Hyundai 10" rotor with the DSM/Evo dual piston caliper:

Top and bottom mounting holes:

So there is the caliper. Now for me personally, I bought the rotors and calipers off my friend's Evolution I. Both rotors and calipers were freshly replaced, so they're both well under 10,000 miles. The pads are almost brand new, and the calipers came loaded with race pads for my convenience. I paid $120 for the lot. I got everything sand blasted and refinished everything myself. Now is a good time to clean everything if buying used. Make sure the pistons compress back in, and clean/lube the sliders. Mine are like brand new regardless due to the low miles, but I took the time to verify and clean/lube the sliders since they're all apart. I also bought 2G DSM brake lines, in black for like $58, which also comes with new crush washers to seal off the banjo bolts.

My finished calipers:

And here is everything installed on the car:

And with the rim to show clearance:

The verdict?

I love them. The brakes bite a lot harder, and don't have anywhere near the fade the stockers do. I can lock up the front wheels without much effort. A quick stab on the brake I can find out what the steering wheel tastes like. Since the Elantra is much lighter than an AWD DSM, these brakes make a bigger difference on this car. I also can't stress the beauty of the stainless braided lines. The pedal feel is so firm, and not spongy. The pedal no longer feels like stepping in a fresh pile of dog sh!t. I no longer have to press 1/3 to 1/2 the way to stop the car. 1/4 the pedal travel with a nice firm press stops the car quickly.

Well, I want more. What else fits?

Just about anything will fit a DSM will fit this. However if the rotor size can't be found in 4x114.3, you can get them re-drilled by a professional machine shop.

Here are a few more options (that will require rotors being drilled):

Mitsubishi Outlander 11.6" rotors, and Outlander caliper brackets. The calipers used are the exact same as the DSM/Evo ones, just with this bigger bracket to space the caliper further for the larger rotor. These will not clear a 15" rim.

Mitsubishi 3000GT/Dodge Stealth VR4 4 piston calipers, and 13" Mustang Cobra rotors. These are HUGE, they will fill up a 17" rim to the lip.

Ford Mustang Cobra calipers and 13" rotors. Again, just like above, these will require nothing smaller than a 17" rim to fit.

Wilwood 4 piston, 12.8" rotor setup.

Those are just some options. Of course there is a lot more out there for these DSMs.

Thanks for reading :)

Disclaimer: Now I know what I'm doing, and these are my findings that I'm sharing. I am not responsible for any problems or issues or accidents one may have. Only attempt brake work if you know what's going on and understand what to do. Failure to install something like this incorrectly can turn sour.
See less See more
41 - 60 of 60 Posts
Hi Guys, this might be my one and only post, but I wanna to say thanks and pass on what I've found for this mod....

The calipers do fit under the factory alloys. (I used Centric 141.46049/50)

The rotor off a 93 Galant S has the same dimensions as the Eclipse except is four lug. (I used Centric 121.46035).

Someone mentioned using Sonata rotors. I don't think this is the best idea. Using Centric's specs (120.50010) these are 2mm thicker 4mm taller and 1.5 lbs heavier.

Wheel Tire Automotive tire Car Locking hubs
See less See more
Hi Guys, this might be my one and only post, but I wanna to say thanks and pass on what I've found for this mod....

The calipers do fit under the factory alloys. (I used Centric 141.46049/50)

The rotor off a 93 Galant S has the same dimensions as the Eclipse except is four lug. (I used Centric 121.46035).

Someone mentioned using Sonata rotors. I don't think this is the best idea. Using Centric's specs (120.50010) these are 2mm thicker 4mm taller and 1.5 lbs heavier.

View attachment 33721
Good info, great to know the rotors off a Galant work :) thank you for the information!!

I'm debating getting the 13" Baer's off my Talon re-drilled for 4x114.3 and use them on my silver 05.

See less See more
I didn't try the Baer's yet, the rotors are quite huge and heavy, and slugging around that weight if not needed isn't a good idea. I installed the Evo/DSM brakes and stainless braided lines on my silver 05 as well, and the stopping power is as sexy as ever. I'm going to be tracking this car, and will post the outcome when I do. If they're adequate I will leave them as is. If they get too hot, I will either do the larger outlander rotors/brackets or throw the massive Baer's on there.

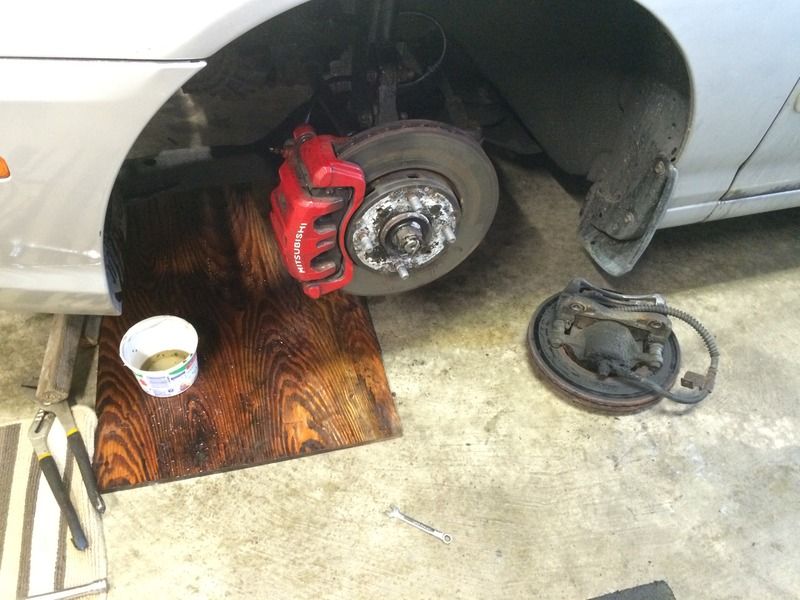

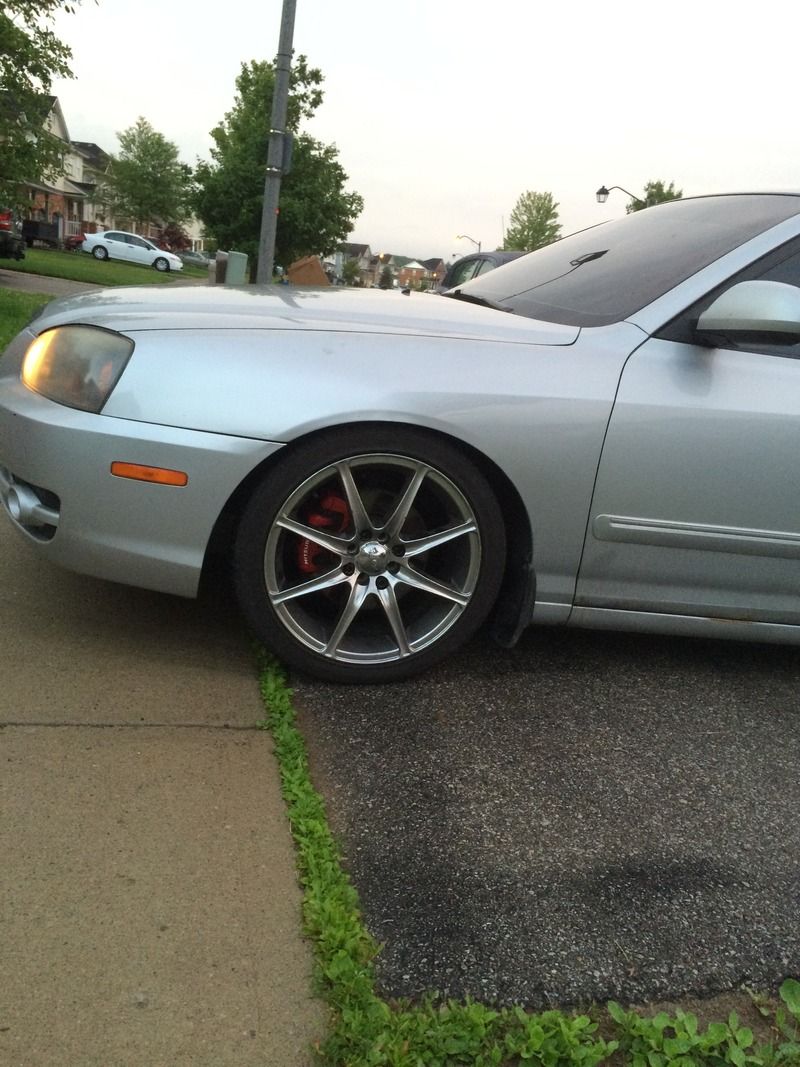

Here are pics.

See less See more
Looks real good gotta upgrade the rotors to slotted & drilled rotors
Na, I'm gonna run them the way they are because they don't cost me anything. They have a tone of life left on them. If I need more brake, I will just upgrade to a bigger setup since it's already got performance pads loaded in there :)
So dsm calipers bolt on to elantra rotors.?
Read the first post it will explain everything ;)

But no. You need early Evo rotors or re-drilled DSM rotors
I'm going to update this like I promised I would.

I took the car to the track and did some lapping. I went out 4 separate times and did 4-5 laps each time, the track is technical but there are also a couple stretches that even the slow n/a Elantra can make it up to about 85-90 mph. The course is 1.9 miles long.

Anyways, the brakes held up great. I still have the stock drums on the back which do a whole lot of nothing, so most of the hard breaking is done by the fronts. After the first run there was some smoke coming from the brakes, but it's what I believe was just the caliper paint burning off as that's the first time they've ever gotten so hot. All the other laps there was no smoke.

I'm using DOT4 fluid and I did not experience any brake fade, or any excessive heat in the brakes even 5 laps (9.5 miles) into it. I think this goes to show how well these can hold up on a much lighter car than they were designed for. If I had the stock Elantra brakes I would've melted them 2 laps in, and wouldn't have had the braking force to brake later just before the turns.

Once I get some things that needed addressed with the car I will head back and do some longer runs with more consecutive laps and see what the outcome is. So far, I am impressed. An 11" brake setup on this car is what 99.99% of us need.

Everybody seriously.... Ditch the stock brakes. These are wicked
See less See more
Glad to hear those brakes are working out for you, I just bought another XD and since I need to do the brakes. I mine as well upgrade them, where's the best place to get these calipers and rotors?
Glad to hear those brakes are working out for you, I just bought another XD and since I need to do the brakes. I mine as well upgrade them, where's the best place to get these calipers and rotors?
Another one? So you have two now or just the one? Congratulations on the buy. Post some pictures when you get a chance.
Another end-of-racing-season update.

Since the last update I have went to the track some more. I had one caliper stick on me so I ended up buying 2 remanufactured ones through work. I also put in new pads, EBC Greenstuffs. I am still on the same rotors, lines, and DOT 4 brake fluid.

They are truthfully amazing. I sorted all the little things out from the first track day, and I was able to stay on the track for much longer in one session now. 10-15 laps in at once (over 20 miles) of hard, hard driving and braking and not a single problem. I could feel the brakes getting warm near the end, but after half an hour hard on the brakes I can't complain :) And this for the most part is a full weight, daily commuter car.

It's impressive to see a 140hp car with inexpensive brakes, good tires and some coilovers running laps around WRX's, civics, Miatas and brand new 5.0 Mustangs.
That's pretty cool. I would love to have seen that in person. I will look into those brakes as it is almost time for new ones for me.

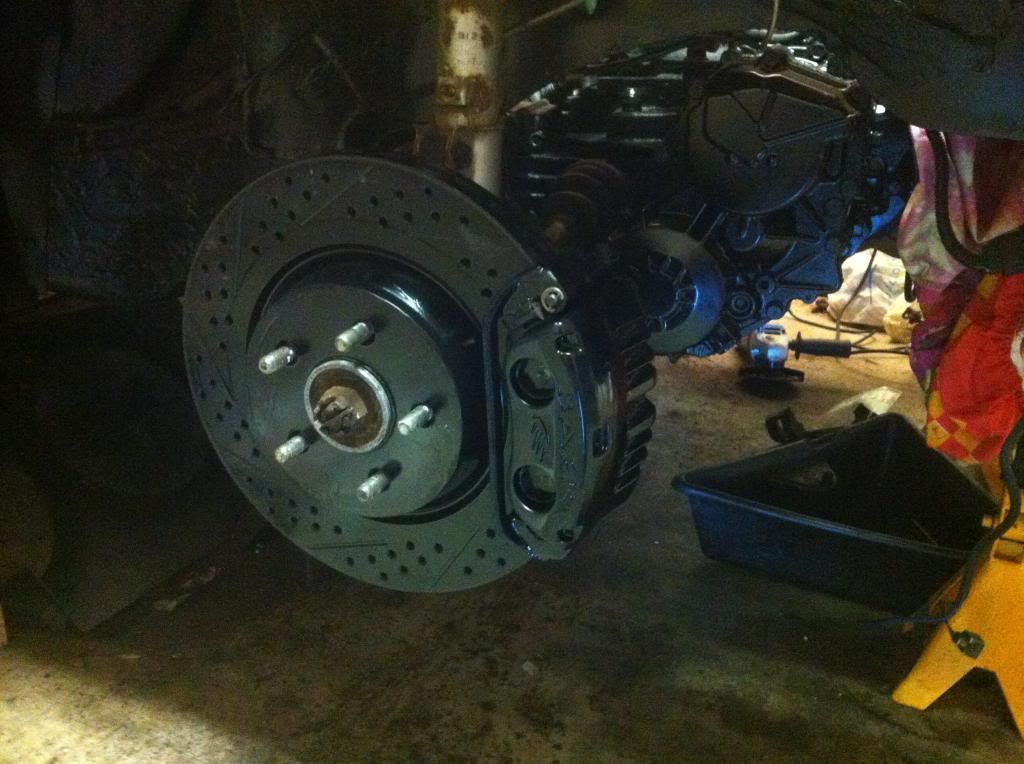

This was one of the first mods done to my Elantra, best bang for buck mod out there IMO. Calipers from a Galant V6, rotors from a first gen Altima, pads from a 3000GT.
You should. The only regret you will have is regretting you didn't change to these a long time ago :)

I'm pretty sure I wouldn't have made it past 2 laps without boiling and warping the stock brakes.
This plus tires, and handling goodies equals one hell of a car.
I am looking into these now. What is the difference between the green stuff, red stuff and yellow stuff?
How aggressive the pads are. Greenstuffs I find great for the weekend warrior that sees daily driver status without having to swap out pads for the track versus street. They behave great on the street too when they're cold (aka being on the highway for 20 minutes and having to slam on the brakes)

Overall a great pad for most people's needs.
I don't mean to revive this thread but is this a better upgrade compared too some of the upgrades in the DIY section? I really like how these look and I think I want to do it myself. Problem is I can literally not find any rotors from an evo 1 2 or 3. I haven't tried looking for the caliper. Anyone have a website or links to everything I would need to do this? Thanks!
